| 브랜드 이름: | GBS |
| MOQ: | 1 |
| 가격: | $2,300-2,630 |
This system primarily meets the energy requirements of household users, providing intelligent and convenient integrated household energy storage solutions that seamlessly combine energy storage battery systems, photovoltaic power generation systems, and grid electricity.
Ideal for urban and rural areas with high electricity costs, unstable grid operation, frequent power outages, and locations without grid coverage requiring reliable household electricity and energy security.

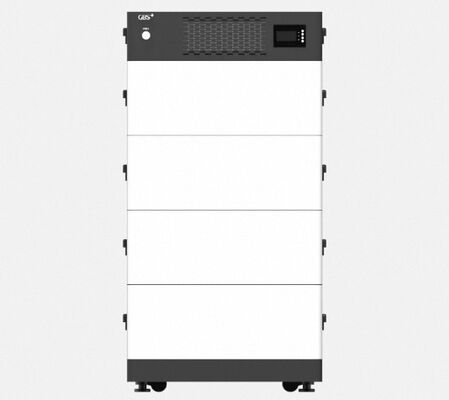

The system consists of a photovoltaic inverter and multiple stackable battery modules. The number of battery modules can be selected according to user power requirements. Additionally, parallel capacity expansion can be implemented between systems (supporting up to three parallel expansions) to accommodate greater power demands.
| Parameter | Specification |
|---|---|
| Storage Energy | 5.12KWh x N |
| Battery Voltage and Capacity | 51.2V / (100 x N)Ah |
| Output Power | 5KW |
| Output Voltage | 230Vac ±5% |
| Output Efficiency | 90% |
| AC Output Voltage | 230Vac |
| Maximum PV OCV | 145VDC |
| MPPT Working Voltage | 60~130VDC |
| Maximum PV Charging Current | 80A |
| Maximum AC Charging Current | 60A |
| Working Temperature | Charge: 0°C~55°C; Discharge: -10°C~55°C |
| Storage Temperature | -15°C~60°C |
| Relative Humidity | 5%~95% |
| Battery Module Voltage and Capacity | 51.2V 100Ah |
| Battery Module Weight | 55Kg |
| Battery Module Size | 600 x 480 x 230mm |
| Inverter Weight | 20Kg |
| Inverter Size | 600 x 480 x 150mm |
| Bottom Bracket Weight | 10Kg |
| Bottom Bracket Size | 600 x 480 x 109mm |
ZHEJIANG GBS ENERGY CO., LTD.
Zhejiang GBS is a national high-tech enterprise dedicated to the research, development, and manufacturing of lithium iron phosphate batteries and lithium battery integration systems. Established in July 2007, the company operates a digital demonstration factory in Zhejiang province with two production bases boasting an annual production capacity of 2 GWh.
The company's long-term purpose is "innovation to improve quality, quality awakens the concept," pursuing "ideas to improve the environment, and the environment benefits mankind." GBS comprehensively promotes the construction of the corporate "Goose Team" culture and has established a "lithium battery research and development center" and "academician workstation" for professional development of lithium battery system products.
GBS has obtained authorization for more than 70 patents covering inventions, utility models, and appearances. The company holds UL, TUV, CE, IEC and other international certifications and is listed in the "Automotive Power Battery Industry Specification Conditions" enterprise catalog. GBS has passed explosion-proof safety certification for mining products, TLC certification for telecommunication products, and CCS certification for marine products, making it one of China's first lithium battery manufacturers with qualification certificates across electric vehicles, mining, telecommunication, and marine applications.
