10KWh 15KWh 20KWh 51.2V 80A Solar Energy Storage System Rechargeable LifePO4 Battery with CE UL

Name: 10KWh 15KWh 20KWh 51.2V 80A Solar Energy Storage System Rechargeable LifePO4 Battery with CE UL
Brand: Zhejiang GBS Energy Co., Ltd.
Price: 2.00 USD
Availability: InStock

브랜드 이름:	GBS
MOQ:	1
가격:	€2,014.05-2,303.02

자세한 정보

제품 설명

자세한 정보

원래 장소:

중국 저장성

배터리 유형:

LiFePO4

출력 전원 범위:

10~20kWh

시스템 유형:

래크 마운트 방식입니다

배터리 전압 및 용량:

51.2V/(100xN)아

출력 전압:

230VAC+-5%

출력 효율성:

90%

교류 출력 전압:

230vac

최대 PV OCV:

145VDC

MPPT 작동 전압:

60~130VDC

최대 PV 충전 전류:

80A

최대 Ac 충전 전류:

60A

컨트롤러 유형:

MPPT

전원:

태양광 패널

강조하다:

51.2V solar energy storage system

lifepo4 battery with CE UL

20KWh household energy storage

제품 설명

10KWh 15KWh 20KWh 51.2V 80A Solar Energy Storage System Rechargeable LifePO4 Battery with CE UL

This system primarily meets the energy requirements of household users, providing intelligent and convenient integrated household energy storage solutions that seamlessly combine energy storage battery systems, photovoltaic power generation systems, and grid electricity. Ideal for urban and rural areas with high electricity costs, unstable grid operation, frequent power outages, and locations without grid coverage requiring reliable household electricity and energy security.

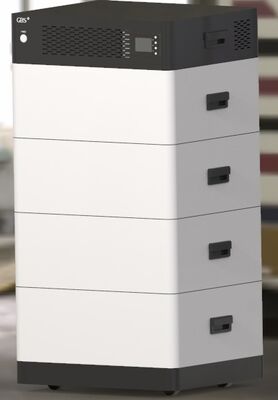

The system consists of a photovoltaic inverter and multiple battery modules that can be stacked together. The number of battery modules can be selected according to the user's power requirements. Additionally, parallel capacity expansion can be implemented between systems (supporting up to three parallel expansions) to accommodate greater power demands.

Technical Specifications

Parameter	Specification
Storage Energy	5.12KWh x N
Battery Voltage and Capacity	51.2V / (100 x N)Ah
Output Power	5KW
Output Voltage	230Vac ±5%
Output Efficiency	90%
AC Output Voltage	230Vac
Maximum PV OCV	145VDC
MPPT Working Voltage	60~130VDC
Maximum PV Charging Current	80A
Maximum AC Charging Current	60A
Working Temperature	Charge: 0°C~55°C; Discharge: -10°C~55°C
Storage Temperature	-15°C~60°C
Relative Humidity	5%~95%
Battery Module Voltage and Capacity	51.2V 100Ah
Battery Module Weight	55Kg
Battery Module Size	600 x 480 x 230mm
Inverter Weight	20Kg
Inverter Size	600 x 480 x 150mm
Bottom Bracket Weight	10Kg
Bottom Bracket Size	600 x 480 x 109mm

Company Profile

ZHEJIANG GBS ENERGY CO., LTD.

Zhejiang GBS is a national high-tech enterprise dedicated to the research, development, and manufacturing of lithium iron phosphate batteries and lithium battery integration systems. Established in July 2007, the company operates a digital demonstration factory in Zhejiang province and currently maintains two production bases with an annual production capacity of 2 GWh.

The company's long-term purpose is "innovation to improve quality, quality awakens the concept," pursuing "ideas to improve the environment, and the environment benefits mankind." GBS comprehensively promotes the construction of the corporate "Goose Team" culture and has established a "lithium battery research and development center" and "academician workstation" for professional development of lithium battery system products.

The company has obtained authorization for more than 70 patents covering inventions, utility models, and appearances. It has achieved UL, TUV, CE, IEC, and other international certifications and is included in the "Automotive Power Battery Industry Specification Conditions" enterprise catalog. GBS has passed explosion-proof safety certification for mining products, TLC certification for telecommunication products, and CCS certification for marine products, becoming one of China's first lithium battery manufacturers to hold qualification certificates in electric vehicles, mining, telecommunication, and marine applications.
