| 브랜드 이름: | GBS |
| 모델 번호: | GBSFP51200T |
| MOQ: | 1개 |
| 가격: | negotiable |
| 지불 조건: | L/C, D/A, D/P, T/T, 서부 동맹, MoneyGram |
| 공급 능력: | 매년마다 1800000 PC |
| Parameter | Value |
|---|---|
| Nominal voltage | 51.2VDC |
| Nominal capacity | 200Ah |
| Battery energy | 10.24KWh |
| Cutoff charge voltage | 57.6V |
| Cutoff discharge voltage | 46.4V |
| Fast Charge Current | 200A |
| Maximum Discharge Current | 200A |
| Maximum charge power | 10KW |
| Maximum discharge power | 10KW |
| Short circuit current | 504A |

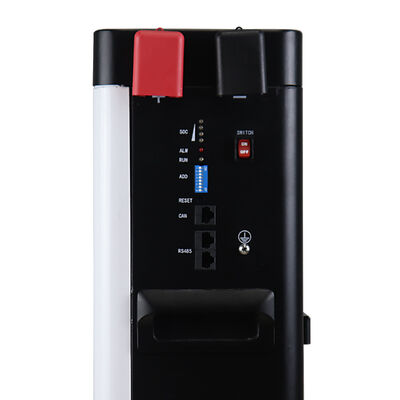

| Display | SOC status indicator, LED indicator |
| Communication | RS485, CAN |
| Dimension (W×D×H) | 450×229×650mm |
| Weight | 92kg |
| Installation | Ground mounted or wall mounted |
| Working temperature | Charge: 0~65℃, Discharge: -20~65℃ |
| Storage temperature | -20~45℃ |
| Relative Humidity | 5%~95% |
| Maximum operating altitude | 4000m |
| IP rating | IP20 |
| Cell type | LiFePO4 |
| Cycle life | 6000 cycles @ 80% DOD/25℃/0.5C |
| Scalability | Max 15 batteries in parallel |
